CRIMSON DAWN

- Endurance Road -




A four season ultra-light endurance road frame, for big days in the saddle and the road less travelled. For all types of road and light gravel riding, easier hill climbs and lightning fast descents.

The frame is designed to be vibration absorbing for long distance comfort, ultra-light for endurance racing and highly adaptable for long adventures, winter training and commuting.



DETAILS

phase-image-changer
HAND MADE
HAND MADE

Fillet brazed using a mix of Columbus spirit, Life and Zona steel with Columbus chainstays, threaded BSA bottom bracket and a straight headtube. Tubes chosen to be light and vibration absorbing to make a less tiring ride. Fillets are left unfiled so the quality of the craftsmanship can be appreciated.

see gallery →

FULLY CUSTOM
FULLY CUSTOM

Every frame is custom fitted and built by hand to fit the rider perfectly. All frames are bespoke custom painted with brand name and logo.

Externally routed cables allow easy maintenance, with bottle bosses on the down tube, seat tube and top tube to accommodate frame luggage or extra bottles for longer endurance rides. Cable bosses for a 2x drivetrain and a flat mount 160mm rear disc.

see geometry →

SELECT COMPONENTS
SELECT COMPONENTS

Custom painted Ragley Trigg carbon forks, Shimano GRX 2x11 drivetrain and vibration absorbing components make for the smoothest endurance road ride.

see components →

GALLERY

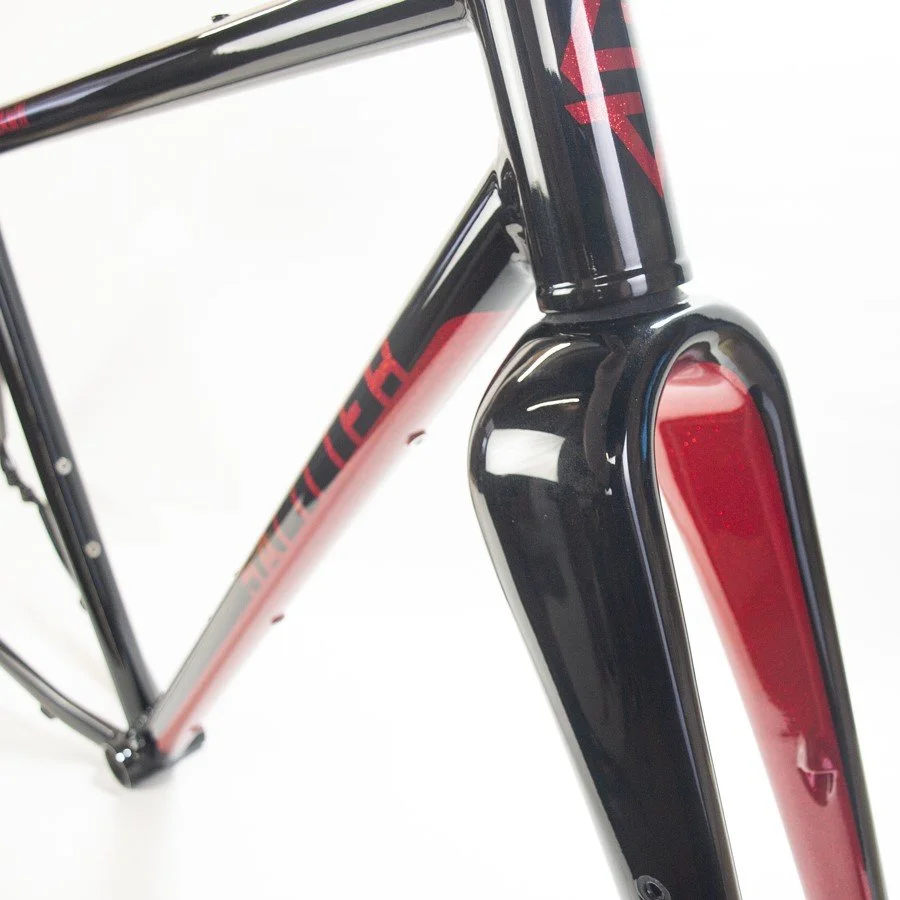

Frame and fork.jpg

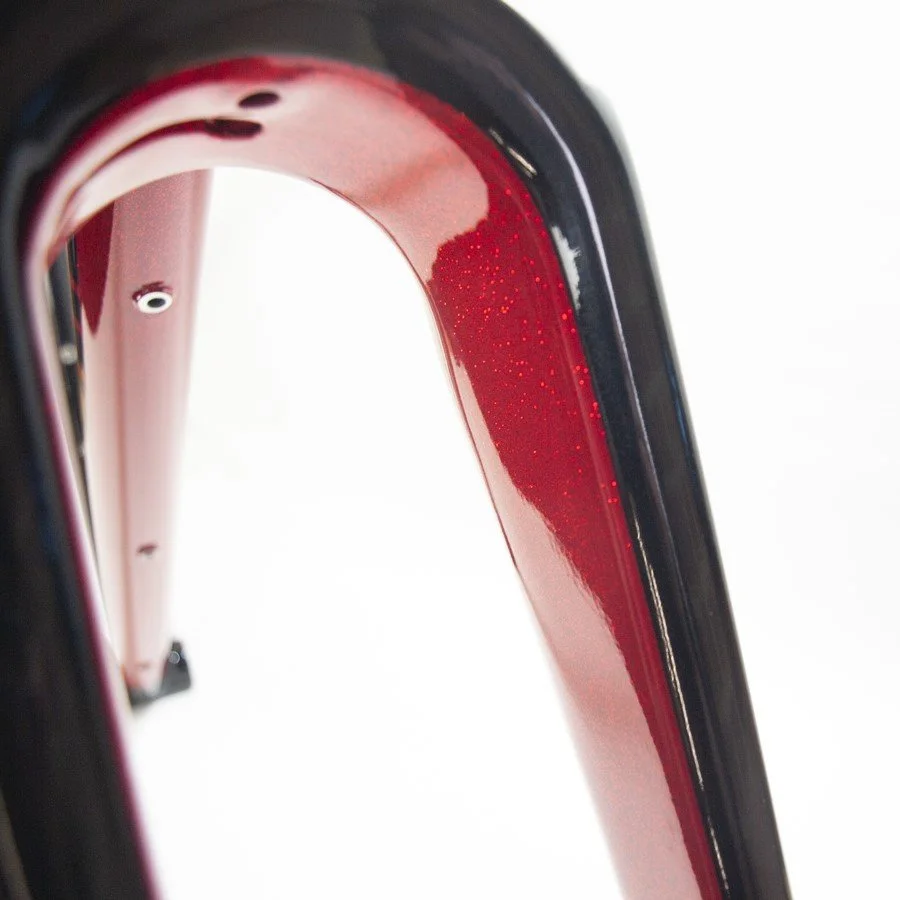

Inside fork.jpg

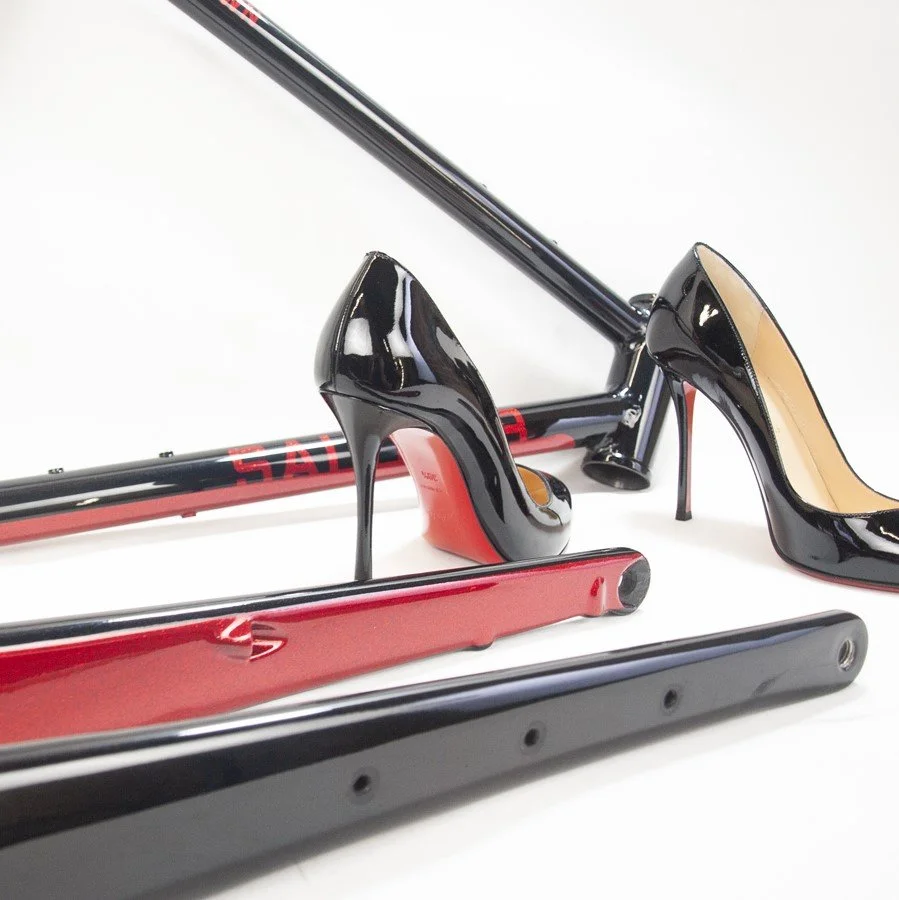

Shoes and fork.jpg

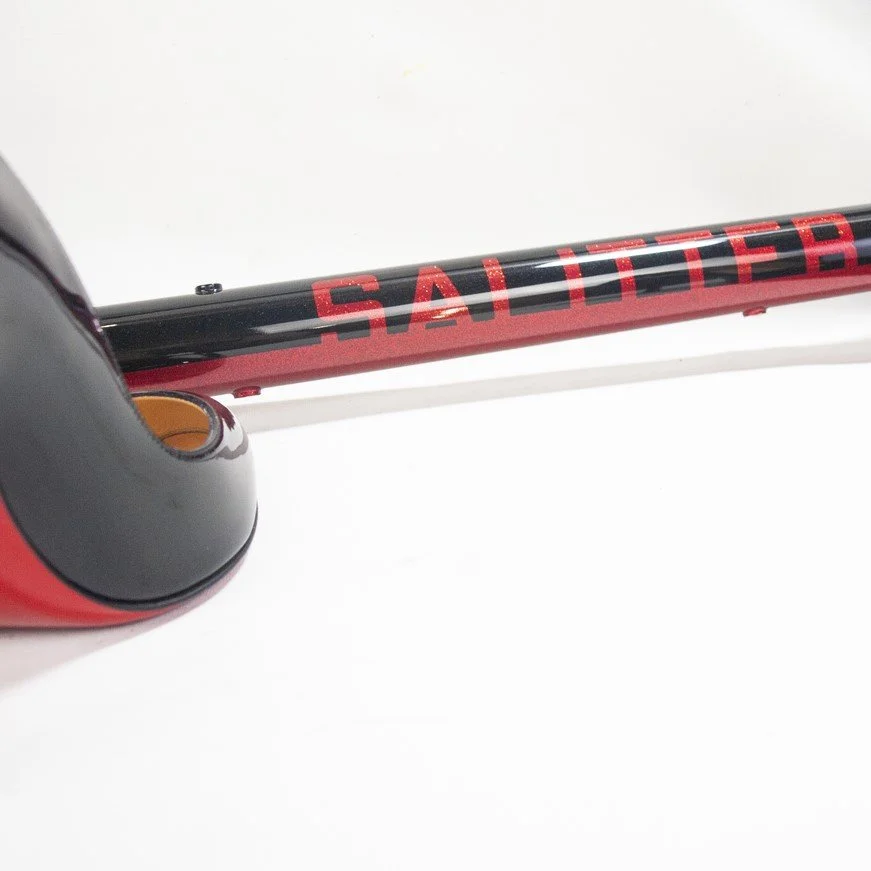

Side sparkle.jpg

GEOMETRY



CRIMSON DAWN

A | Reach 380mm

B | Stack 569mm

C | Head tube length 130mm

D | Seat tube length 457mm

E | Bottom bracket drop 75mm

F | Seat tube 74°

G | Head tube 71°

H | Chain stay length 430mm

I | Wheelbase 1024mm

J | Trail 69mm

COMPONENTS


    FRAME | Columbus main tubes and stays
    FORK | Ragley Trigg carbon gravel
    700c WHEELS | Hope RS4 hubs DTSwiss RR481
    700c TYRES | TBC
    HEADSET | Cane Creek Forty
    STEM | Prime
    BARS | Spank Flare 25 Vibrocore
    BAR TAPE | TBC
    SEATPOST | Prime Kanza Gravel
    SADDLE | Fi'zi:k Luna x5
    CRANKS | Shimano GRX RX810 Double
    BOTTOM BRACKET | Shimano Ultegra BBR60
    PEDALS | Nukeproof Horizon
    CASSETTE | Shimano Deore XT M800
    F+R MECH | Shimano GRX 810 11 speed
    BRIFTERS | Shimano GRX ST-RX810
    CALIPERS | Shimano GRX 810
    ROTORS | Shimano Ultegra SM-RT800 Ice Tech
